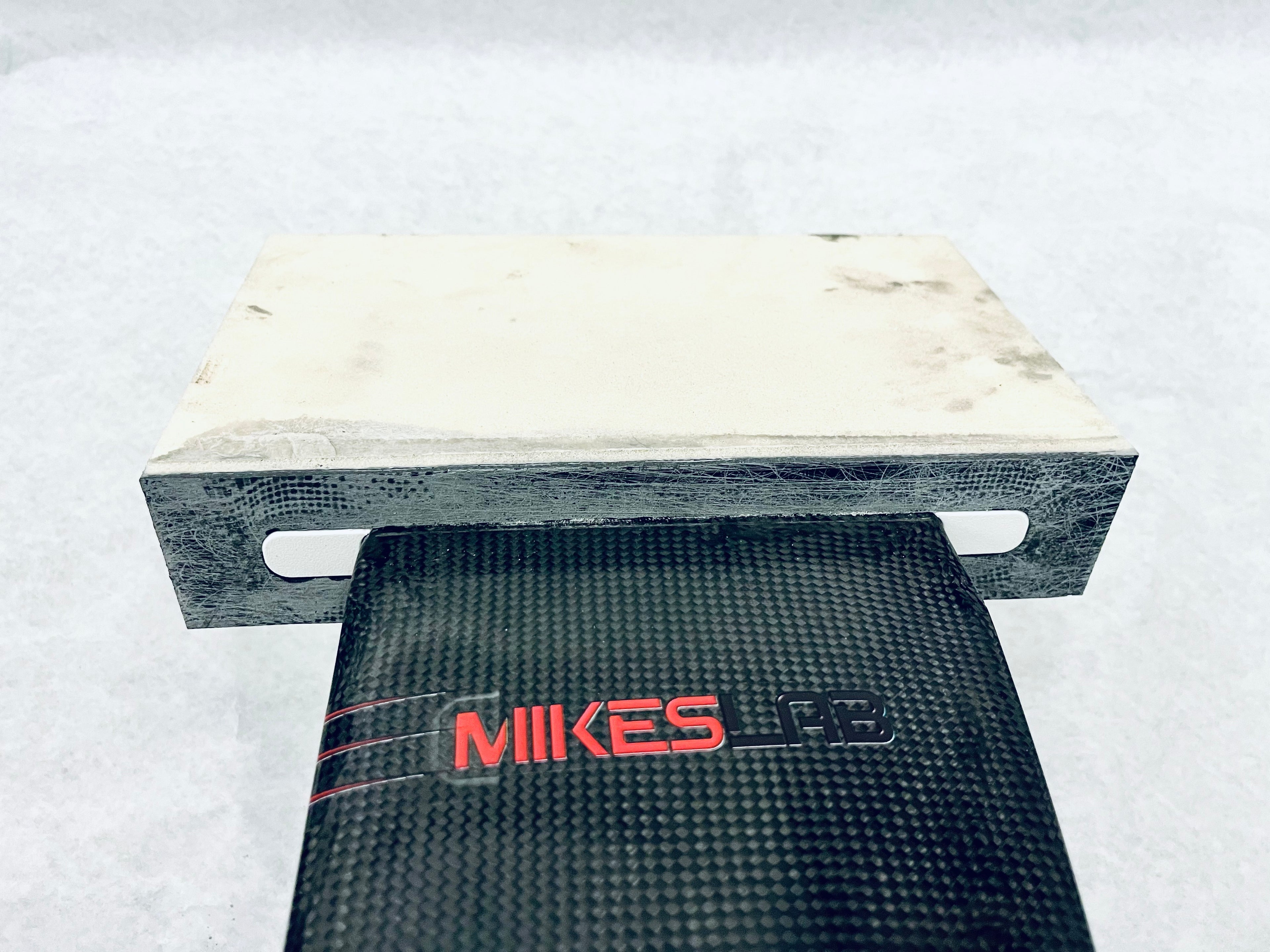

Adjustable Tuttle Box (6" Thick) optimized for MikesLab Masts
Adjustable Tuttle Box (6" Thick) v3
Our Adjustable Tuttle Box allows 2” of adjustment in 1” increments. (One set of solid 3D printed shims is included with the Adjustable Box.)
You will need to purchase the MikesLab drill guide to ensure perfect hole alignment.
Additional shim packs can be purchased separately.
Shim Pack Options:
- 2” (0 degree)
- 1” (0 degree) Included with Adjustable Box
- 1” (+ 1 degree)
- 1” (+ 1.5 degree)
Angular adjustment shims are designed for use in the center position.
Contact us for special shim options.
This is an extra deep version of the Tuttle Box for boards up to 6" thick. This version has extra clearance for screws.
Maximize your wingfoiling or parawing performance with our Adjustable Tuttle Box.
A perfect snug fit with MikesLab Tuttle masts.
Optimized carbon layup for maximum stiffness. Unbelievable pumping, turning, and foil responsiveness.
Ultralight at 499 grams including shims, super stiff lightweight construction.
Made in USA from the highest quality Aerospace and Marine materials.
These tuttle boxes match the original Larry Tuttle "Deep Tuttle" specifications and are compatible with any Tuttle Mast.
Overall dimensions are 2" wide, 9.5" long, 6" tall. When in doubt purchase a Tuttle Box taller than your board and cut down for a perfect fit. Don't hesitate to contact us with questions.
